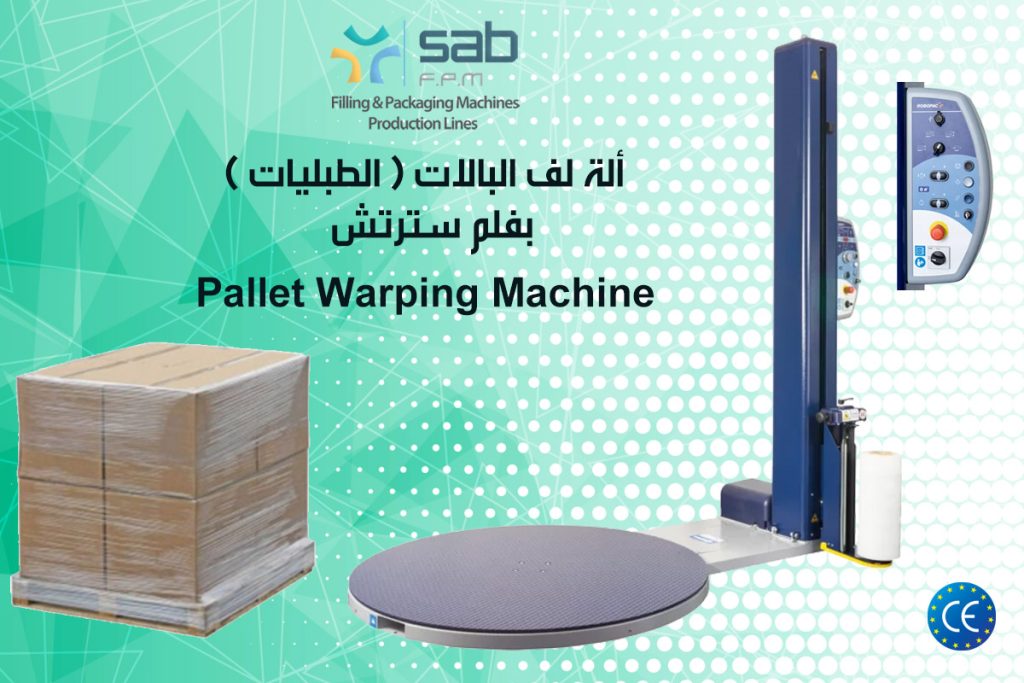

Pallet Wrapping Machine

ماكينة-للف-بفلم-سترتش

 Pallet wrapping machine (stretch film), in cooperation with SAB FPM, model: EXP-408, with the following specifications:

  • Platform (turntable) diameter: 1500 mm, speed: 10 rotations per minute, with inintial position.
  • Hinged column to facilitate machine installation.
  • Hot painting with epoxidic system.
  • Max pallet height 2000 mm.
  • Max loading weight 1200 Kg.
  • Control panel with keys to dominate all machine functions, pilot lamps, On/Off switch, and emergency stop switch.
  • Operator can control the operation cycle through control panel, with automatic wrapping program.
  • Selector key for wraps upwards & downwards:

– Two wraps down and one wrap up.

– Three wraps down and two wraps up.

  • Safety switch to prevent operator’s foot from slipping.
  • Photocell to detect pallet height.
  • Soft start and soft stop.
– Carriage: film tension with adjustable spring clutch.

– Electric power supply: 220 VAC, 1 phase, 50 Hz.Price:
